Why Upgrading XLS to XLSX Is Value Your Time
Ask any seasoned Java developer who’s labored with Excel recordsdata lengthy sufficient, and also you’ll in all probability hear an analogous chorus: the outdated XLS Excel format is clunky and annoying. It’s been round for the reason that late ’80s, and whereas it’s nonetheless supported in quite a lot of programs, it is not doing us many favors at this time. It was, in spite of everything, changed with XLSX for a purpose.
Sadly, there’s nonetheless quite a lot of essential knowledge packed in these outdated binary XLS containers, and a few builders are tasked with making clear conversions to XLSX to enhance the usability (and safety) of that knowledge for the long term.
On this article, we’re taking an in depth have a look at why changing legacy XLS recordsdata to the newer XLSX format is essential. We’ll dig into what modifications below the hood throughout that conversion, why XLSX is clearly significantly better suited to trendy workflows, and what your finest choices are to effectively construct out programmatic XLS to XLSX conversions in a Java software.
Why Individuals Nonetheless Use XLS — And Why It’s a Headache
The older XLS format makes use of a binary file construction. That alone units it aside from virtually each main doc format we use at this time, which are inclined to favor XML or JSON-based requirements. In case you’ve stumbled throughout an outdated finance export or been pressured to inherit reporting logic from 2006, there is a good probability you’ve got handled binary Excel knowledge, and also you in all probability haven’t been excited to try this once more.
XLS format has some onerous limits baked in that do not make a ton of sense at this time. It’s capped at simply over 65,000 rows and 256 columns per sheet (a staggering 983,576 rows and 16,128 columns wanting trendy XLSX capabilities), and discovering clear interoperability for XLS with newer APIs or cloud companies will be hit-or-miss.
Much more frustratingly, as a result of XLS is a binary container, you may’t simply crack it open to see what’s improper internally. You’re caught counting on some library to parse XLS contents appropriately — and good luck when you hit one thing nonstandard throughout that course of. As compared, on the lookout for errors within the Open XML file construction that XLSX (and all trendy MS Workplace) recordsdata use is like looking for typos in a child’s e-book.
After which there’s the tooling: common open-source Java conversion libraries like Apache POI can deal with XLS recordsdata, however that possibility requires a special code path, completely different lessons, and usually extra brittle conduct in comparison with working with XLSX and different Open XML recordsdata. We’ll cowl this explicit problem in some extra element afterward on this article.
What’s So Nice About XLSX Anyway?
Fashionable Excel’s XLSX format is a part of Microsoft’s Open Workplace XML customary. Which means it’s only a ZIP archive filled with plain, neatly organized XML recordsdata at its most elementary stage. XML is each human-readable and machine-friendly: one of the best of each worlds.
As a substitute of being one large binary blob, every a part of the XLSX spreadsheet — the worksheets, the shared string desk, the model definitions — is damaged out into neatly right into a collection of structured XML paperwork.

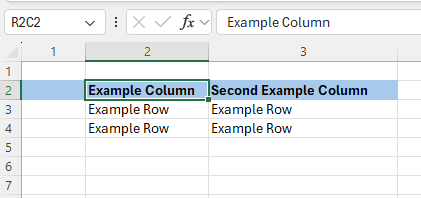

For instance, if we constructed a easy spreadsheet with the next content material:
We’d discover this actual knowledge represented within the worksheet XML file like so:
The column show settings are outlined within the
This construction actually does matter. It makes debugging simpler, model management extra smart, the format extensible, and all the file extra future-proof. And, after all, it performs far, way more properly with open-source instruments, cloud APIs, and Java libraries, which usually choose a weight-reduction plan of well-defined transportable codecs.
So, when you’re engaged on something that entails remodeling spreadsheet knowledge, exposing it through APIs, or piping it by means of cloud platforms, XLSX is by far the safer and extra scalable selection. There are quite a few explanation why binary containers had been eradicated in favor of compressed XML to start with, and every little thing we’ve talked about here’s a contributing issue.
What Really Occurs Throughout the XLS to XLSX Improve
Upgrading XLS to XLSX programmatically is a little more complicated than the easy “Save As” operation Excel enables you to do manually throughout the Excel desktop software.
Beneath the hood, binary to compressed XML conversion entails some heavy lifting. The outdated binary workbook have to be unpacked and rewritten solely into an XML-based construction. Which means all of the cells, rows, and sheets get redefined as the suitable set of XML components. Every model, font, and border from the XLS binary container will get transformed into an XML equal, too, and the formulation get reserialized.
If XLS recordsdata carry legacy macros or embedded objects (which, by the way in which, it is best to by no means implicitly belief the safety of in ANY spreadsheet handler), the story will get a bit messier. Outdated macros and objects don’t all the time translate cleanly into trendy Excel, and you’ll simply lose constancy relying on the conversion library you’re utilizing. Excel XLSX additionally doesn’t assist macros straight the way in which XLS does; macros will both be cleansed from the XLSX file mechanically, or the Excel software will recommend redefining the file as an XLSM (macro-enabled XLSX) doc.
Fortunately, although, the overwhelming majority of XLS spreadsheet conversions will retailer little greater than tabular knowledge, fundamental formatting, and easy formulation. The conversion for these recordsdata to XLSX tends to be a lot smoother.
Open-Supply Libraries That Get the Job Achieved
Apache POI remains to be one of the best open-source default for Excel work in Java, and it helps each XLS and XLSX.
That mentioned, there’s a big catch on this occasion: you’re working with two separate APIs to deal with XLS and XLSX paperwork. For XLS recordsdata, you’ll be utilizing the HSSF API (which accurately stands for “Horrible Spreadsheet Format”), and for XLSX, you’ll be utilizing the XSSF API (which merely stands for “XML Spreadsheet Format”).
In observe, constructing a conversion workflow through Apache POI means you’ll have to 1) load the XLS file with HSSFWorkbook, 2) construct a brand new XSSFWorkbook, and 3) (tragically) manually copy every sheet, row, and cell from one to the opposite. It’s definitely doable — however it’s additionally extraordinarily tedious. On this case, POI sadly doesn’t provide the magic methodology you in all probability need for file format conversions. You’ll want to write down that translation logic your self.
Nonetheless, when you’re already utilizing POI in your venture for one more function, or when you simply need most management over the workbook construction, it is a strong possibility. Simply don’t count on it to be elegant.
Dealing with XLS to XLSX With a Third-Occasion Net API
An easier possibility for dealing with XLS to XLSX conversions entails utilizing a totally realized internet API resolution. This abstracts the complexity away out of your surroundings. The choice we’ll reveal right here isn’t open supply, and it does require an API key, however it’ll plug straight into your Java venture, and it’ll use very minimal code in comparison with patchwork open-source options. Under, we’ll stroll by means of code examples you should use to construction your API name for XLS to XLSX conversions.
If we’re working with Maven, we’ll first add the next reference to our pom.xml repository:
jitpack.io
https://jitpack.io
And we’ll then add a reference to our pom.xml dependency:
com.github.Cloudmersive
Cloudmersive.APIClient.Java
v4.25
If we’re working with Gradle, we’ll want so as to add it in our root construct.gradle (on the finish of repositories):
allprojects {
repositories {
...
maven { url 'https://jitpack.io' }
}
}After which add the dependency in construct.gradle:
dependencies {
implementation 'com.github.Cloudmersive:Cloudmersive.APIClient.Java:v4.25'
}After we have put in the SDK, we’ll place the Import lessons on the prime of our file (commented out for now):
// Import lessons:
//import com.cloudmersive.shopper.invoker.ApiClient;
//import com.cloudmersive.shopper.invoker.ApiException;
//import com.cloudmersive.shopper.invoker.Configuration;
//import com.cloudmersive.shopper.invoker.auth.*;
//import com.cloudmersive.shopper.ConvertDocumentApi;Lastly, we’ll configure the API shopper, set our API key within the authorization snippet, and make our XLS to XLSX conversion:
ApiClient defaultClient = Configuration.getDefaultApiClient();
// Configure API key authorization: Apikey
ApiKeyAuth Apikey = (ApiKeyAuth) defaultClient.getAuthentication("Apikey");
Apikey.setApiKey("YOUR API KEY");
// Uncomment the next line to set a prefix for the API key, e.g. "Token" (defaults to null)
//Apikey.setApiKeyPrefix("Token");
ConvertDocumentApi apiInstance = new ConvertDocumentApi();
File inputFile = new File("/path/to/inputfile"); // File | Enter file to carry out the operation on.
attempt {
byte[] end result = apiInstance.convertDocumentXlsToXlsx(inputFile);
System.out.println(end result);
} catch (ApiException e) {
System.err.println("Exception when calling ConvertDocumentApi#convertDocumentXlsToXlsx");
e.printStackTrace();
}We’ll get our XLSX file content material as a byte array (byte[] end result), and we are able to write that content material to a brand new file with the .xlsx extension. This simplifies automated XLS to XLSX conversion workflows significantly.
Conclusion
On this article, we realized in regards to the variations between XLS and XLSX codecs and mentioned the explanation why XLSX is clearly the superior trendy format. We prompt a well-liked open-source library as one possibility for constructing automated XLS to XLSX conversion logic in Java and a totally realized internet API resolution to summary all the course of away from the environment.
